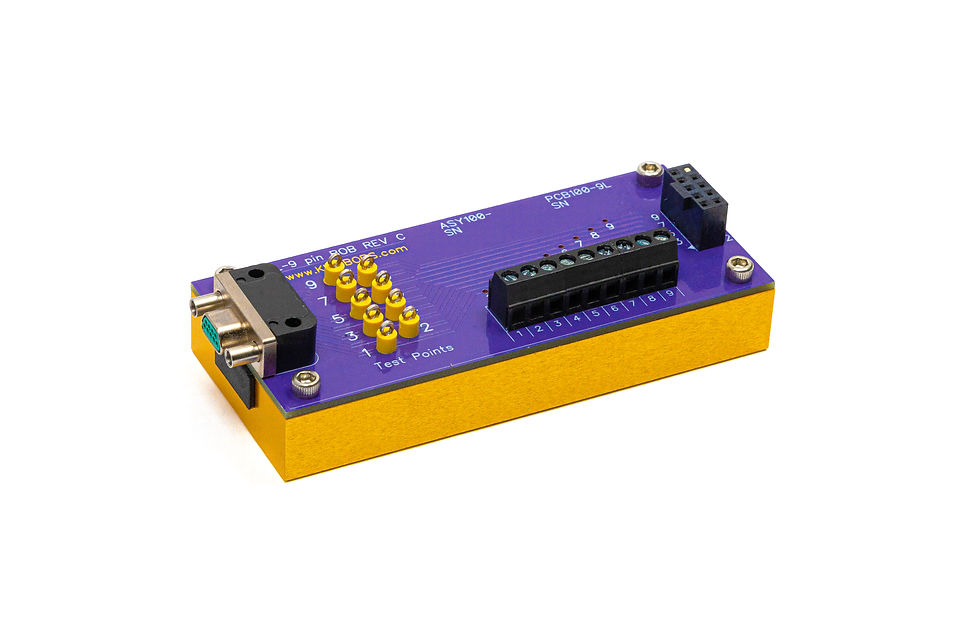

MICRO-D 9 Position Pin Breakout Board (Right Angle)

The Series "100" Breakout Boards are used for Electrical Integration and Test of Systems, Components, and Harnessing. The Micro-D Connector options allow for easy access to signals and Connector Pins for Safe-to-Mate, Prototype, Signal integrity, and Troubleshooting.



Easily Integrate into a FlatSat Bench Configuration for Satellite and CubeSat Integration and Test.



 Pair the "100" Series with the "201" & "202" Series Banana Jack Adapter Breakout Boxes for a custom End-to-End Systems Integration and Test Bench Solution.

MICRO-D 9 Position Pin Breakout Board (Right Angle)

SKU: ASY100-MD-9P-RA
$500.00Price
  •  ●    Micro-D - Right Angle

    ●    Pin Count 09

    ●    Contacts = Pins

    ●    J2 Header- Pitch: .100" (2.54 mm)

    ●    Mate to 09 Pos Banana Jack Adapters

    ●    J2 Accepts Std. 0.025" square Jumpers
